0-3000M Borehole Logging Equipemnt Water Well Logging Natural Gamma SP Caliper Resisitivity for Geophysical Exploration
The GDQ-2D Logging Device is an advanced digital logging tool specifically crafted for field applications, capable of interfacing with various pipe types for logging purposes. Through the integration of sophisticated technologies, this system transforms the conventional approach of using a single ground-based instrument to control a single bulky logging probe into a streamlined process where one instrument can oversee multiple logging probes, deep measurements, power supply management, and more. Characterized by its lightweight construction, user-friendly operation, and easy maintenance, the device can be combined with a durable, temperature-resistant, moisture-proof, and highly reliable tube design.
CUSTOMER FEEDBACK
"Trust in Gold Company: Unleash the Power of Quality Products for Unmatched Excellence!!!"
MAIN FEATURE
- Integrated design eliminates the need for external components and adapters.
- Intelligent system with rapid image processing and advanced algorithms for seamless jointing, calibration, and real-time display.
- Reliable performance with shock-resistant memory, sealed design, and durable probe casing.
- Portable and lightweight for easy transport due to its compact size.
- High-definition camera features low-light capabilities and high resolution for sharp imaging.
- Accuracy is ensured with precise image depth and angle resolution.
- Efficient operation with fast detection speed and user-friendly interface.
- Wide visual angle allows for panoramic imaging without the need for manual focusing.
- Energy-efficient with options for built-in battery or external power source.
- Convenient database management mode facilitates easy data browsing and result storage.
LOGGING PROBES
| No | Model/Name | Parameter to Measure |
| 1 | JDX-2Dr Resistivity & Gamma Probe | SP, Apparent Resistivity, Natural Gamma |
| 2 | JDX-3Dr Combined Probe | 16’’/64’’ Resistivity, SP, Natural Gamma, Temperature, SPR |
| 3 | JJH-2 Res/IP Probe | 16’’/64’’ Resistivity, SP, IP |
| 4 | JCX3-GMD Laterolog&Gamma | Laterolog-3 Resistivity, Natural Gamma, SP |
| 5 | JCC-2A Three-component magnetometer | Magnetic Tri-component |
| 6 | JCH-2 Magnetic Susceptibility Probe | Suscepitibility |
| 7 | JWY-1 Temperature & Fluid Resistivity | Temperature, Fluid Resistivity |
| 8 | JWL-2W Combined Probe | Temperature, Water Level, Flow |
| 9 | JJX-3DA High Precision Inclination Probe | Vertex Angle, Azimuth |
| 10 | JJY-3D Three Arm Caliper | Diameter, Liquid level |
| 11 | JSS-3 Sonic Probe | Travel-time, Equation of time, Amplitude1, Amplitude2 |
| 12 | JMZD-2D Combined Density Probe | Density, Laterolog Resistivity, Natural Gamma, SP, Caliper |
| 13 | JZZ-3 Neutron&Gamma Probe | Natural Gamma, Porosity |
LOGGING WINCH

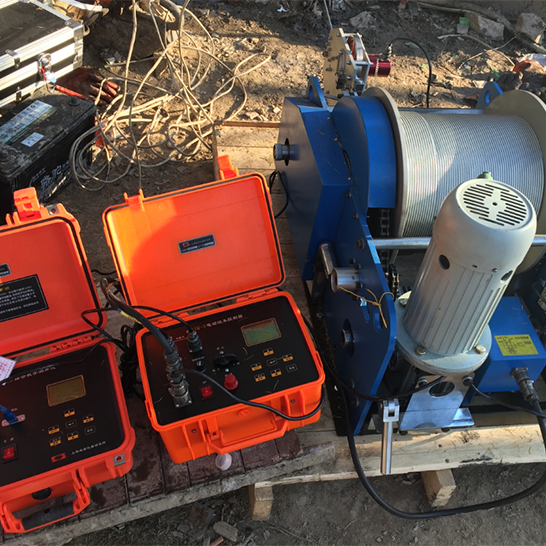

The DJ series winch is specialized equipment designed for geophysical exploration and geological surveys, specifically tailored for compatibility with the JHQ-2D integrated digital logging equipment and other logging tools. Featuring an anti-magnetic design, stepless speed adjustment, and automatic cable arrangement, these winches deliver versatile performance across a range of geological prospecting terrains. Offering a selection of frequency conversion, DC, or AC motors for power, the DJ series winches provide broad speed control, smooth variable speed capabilities, user-friendly operation, and minimal maintenance requirements. Suitable for geophysical prospecting and geological surveys on land, at sea, and on plateaus up to 5,500 meters above sea level.
| Cable length measurement | Automatic measurement |
| Photoelectric pulse generator | SG9208, 1800P/R for each transfer pulse |
| Transmission device | JLH0710 |
| Self-locking brake | Yes |
| Manual brake | Yes |
| Insulation class | Grade F |
| Shell protection level | IP56 |
| Operating environment | Altitude: Less than 5500 meters |
| | Temperature: -20 ℃ to +45 ℃ |
| | Relative humidity: 99% or less |
| Power requirements | 220V current 5A
|
DETAILED IMAGES
COMPANY PROFILE
Chongqing Gold M& E Equipment Co., Ltd. is specializes in manufacturing and development of high-resolution geophysical instruments such as Resistivity Meter, IP instrument, Resistivity Imaging, Seismic instrument, magnetic instrument, borehole camera, borehole logger and drilling equipment ( core drill rig, water well drill rig,engineering drill rig, anchor drilling rig and so on. Also we supply the surveying equipment such as GPS, Total Station, Echo sounder and so on.
